Textile & Dye-Sublimation Printers

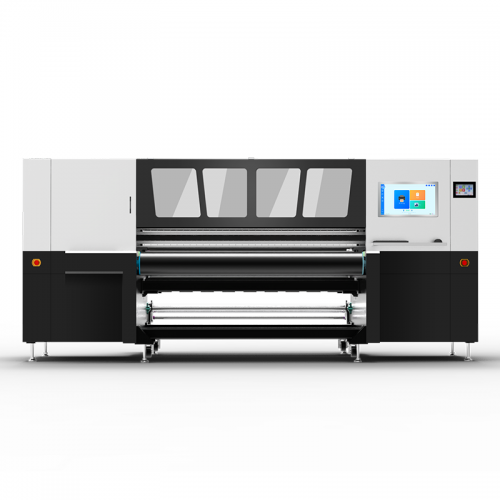

Xenons Coltex DF3-600 DTF Printer Direct to film printer with i3200 printing head

T-shirt Direct to film textile printer with i3200 printhead
Printhead: epson i3200*2/4/8
Productivity: 15/30/80㎡/h
Drop Volume: 2.5pl
Print Size: 600mm 24”
Resolution: 360*2400dpi
Other: air shaft feeder is optional parts
Description Specifications Applications Videos


Xenons Coltex DF series DTF Printer Direct to film printer with i3200 printing head and shaker

DF3 series industrial DTF printer, matched with Epson i3200 print head, can accurately restore the color of the picture, matched with Yips print management software, improve production efficiency, make process management simpler, and support up to eight color configurations; Unique precise ink drop control technology makes your product more distinctive and competitive;

Advantages of using DTF printing solutions

Coltex DTF film printing is suitable for almost all types of textile printing.
It can create any pattern and personalized patterns on white and dark textiles without the need for pre-treatment. In addition, it is commonly used for T-shirts, hats, backpacks, lanyards, shoes, and other clothing products to create personalized fashion pieces. It can also be used for sportswear, cycling wear, and others, allowing you to quickly complete personalized orders

  • Split DTF machine with a shaker, 24′′ print format, ideal for home and office printing.
    This DTF printer is suitable for starting a small business and providing customized service. Its widest print format is 600 (24”) mm and its maximum print speed is 30spm/h.
  • Unrestricted DTF printing technology
    The printing screen is delicate and has high accuracy, which is durable and not easy to fade like screen printing technology

Models DF3-600
Print Head Epson i3200
Number of print heads 2/3/4/8pcs
Media Width 700 mm (27 Inch)
Thickness Maximum 3.00 mm
Roll Outer Diameter Maximum 750 mm (29.5 in),
76.2mm (3 inch) ,50.8(2 inch)
Roll Weight Maximum 700 Kg
Media take-up system Jumbo roll Auto-Feeding system and take-up system
Types Ideal for dye-sublimation transfer printing of custom clothing, fashion apparel, sportswear, soft signage, merchandise, and others
Printing Width Maximum 600mm (24 in)
6pass 15 sq.m/hour(161sq.ft/h)
6pass 30 sq.m/hour(323sq.ft/h)
6pass 80 sq.m/hour(861sq.ft/h)
Printing Resolution (dots per inch) Maximum 3200 dpi
Inks Types DTF Pigment ink
Ink Capacity 5L (± 100 ml)
Colors 4Colors(KCMY+W)/6/8Colors(CMYK FY FM GROR+W+SS)
Ink curing unit Integrated Tri-Heating System,
Extend infrated heating and cooling system
Interface High Speed USB-3.0/ Lan port
Power-saving feature Automatic sleep feature
Power supply Voltage and frequency AC 220 V ± 10%, 50/60 Hz
Required power capacity Maximum 35A (Printer 15A, Heater 25A)
Printer Dimensions Machine(L*W*H): 3932*2326*2126mm
Package(L*W*H): 4026*2098*1976mm
RIP software
Standard Photoprint, other RIP optional
Weight (with stand) 195+300KG
Environmental Power ON Temperature: 68° to 90°F (20° to 32°C) (72°F [22°C] or more recommended) / Humidity: 40 to 60% (no conde nsation)
Power OFF Temperature: 41° to 104°F (5° to 40°C)
Humidity: 20 to 80% (no condensation)
PrintLinks System Requirements
Operating system Windows® 7/10 (64-bit)
CPU Intel® Core™ 8, 4.0 GHz or faster recommended
RAM 8 GB or more recommended
Video card and monitor A resolution of 1,280 x 1,024 or more recommended
Free hard-disk space 80 GB or more recommended
Hard-disk file system NTFS format
Optical drive DVD-ROM drive
Other requirements Ethernet or USB port
Internet connection and web browser to software Registration
