Small UV Flatbed Printer

A3 Size Flatbed UV printer with 2 i3200/xp600 heads

High-Efficient small format uv printer
Printhead: EPSON i3200-U1/XP600
Productivity: 10 sqm/h
Ink Set: CMYK LcLm White Varnish
Drop Volume: 3.2pl
Print Size: 297mm×420mm
Resolution: 720*2400dpi
Ink: UV curable
Description specifications Applications Video


Xenons A3 SERIES is a Small LED UV flatbed printer expand more personalized printing business opportunities

This versatile printer print business towards high growth and a higher return on investment (ROI).

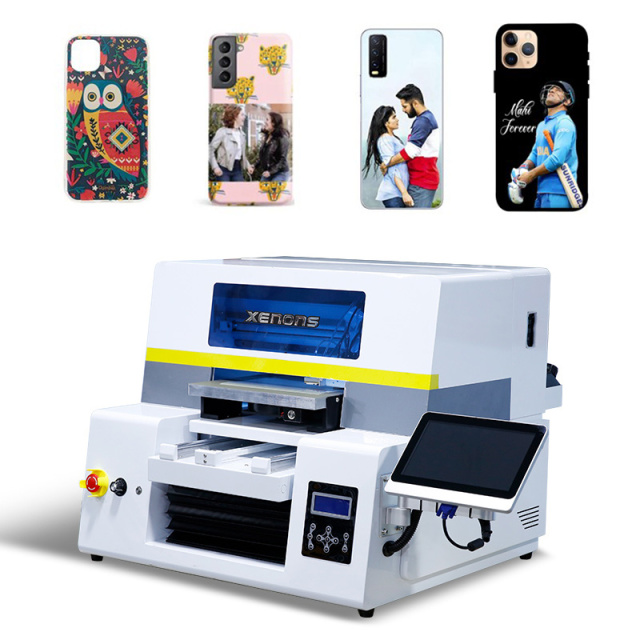

This UV Flatbed printer enables high-quality direct printing on mobile phone case, fan, pen logo, business card, sign or almost any kind of rigid surface,
including wood, glass, leather, ceramic tiles, etc.The printing speed 8pss A4 frame full color printing for 45 seconds.
This UV flatbed printer for high-endurance work and low running costs to deliver high-quality print for a long period of time.

Variable color configuration + Easy Upgrate
Standard 4/6 Color plus White,Light Magenta,Light Cyan,Varnish ink for option.
Satisfy different customers for high speed,high resolution,special White and Varnish application on different substrates.
Personalized panel
New button board design,more functional; Removable operation panel,easy to operate
Intelligient carridge
Different Nozzle position,more efficiency White+Colored+Varnish print at the same time;
Double LED UV lamps for dry the White and Colored ink also Varnish.

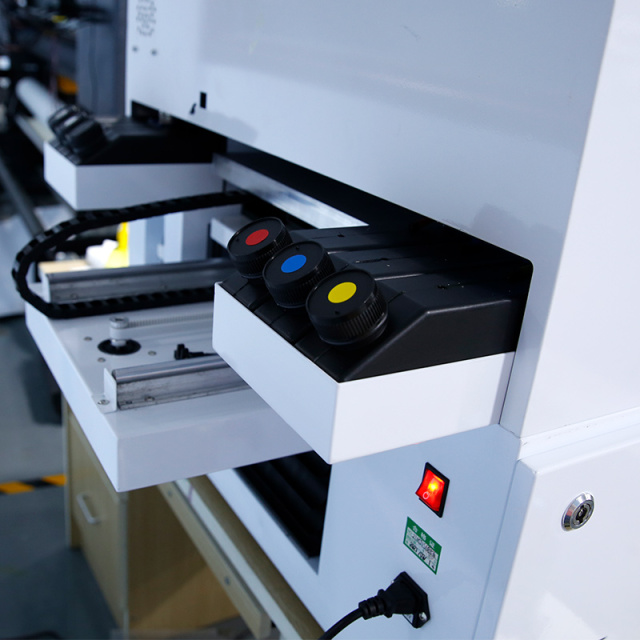

Auto ink supply system
Carriage automic lock to stablize the heads and the captop;Easier maintenance ink heat up system in the damper;
White ink recirculation for better avoid the blocking; Carriage suction device to clean the air and the dust.
Maximum the productivity
An array of staggered printheads increases the printing speed and achieves top-level productivity in the same product category.
High-value added print with special color ink broadens the possibilities of business.
It is a clear ink that can give an additional value such as both gloss and matte tones, texture expression according to the application.
Reliable operating support package
Ink and media shortage, clogged nozzles, and other minor problems influence stable productivity.
It fully supports continuous printing with reliable technologies.
It provides high-grade glossy representation and expressive embossing feeling with highly-concentrated clear to lead a fine and beautiful texture print.
Models X6090
Print Head EPSON i3200-U1/XP600
Number of print heads 2
  Height 100mm
Weight 5kg/m2 (22 lb), or less
Printing size 330*600mm
Types almost any kind of rigid surface, including wood, glass, leather, ceramic tiles, Metal and many more
Inks Types UV Curable
Ink Capacity 250ml
Speed 8pss A4 frame full color printing for 45 seconds
Ink curing system Doul UV LED Lamps
Printing Resolution (dots per inch) Maximum 3200 dpi
Interface Lan port
Power-saving feature Automatic sleep feature
Power supply Voltage and frequency AC 220 V ± 10%, 50/60 Hz
Required power capacity Maximum 35A (Printer 15A, Heater 25A)
Power Consumption During operation Max. 250W
Printer Dimensions Machine(L*W*H): 870×780×650mm
Machine(L*W*H): 980×890×830mm
RIP software MainTopRip/PP
Weight (with stand) G.W:68KG   N.W:95KG
Environmental Power ON Temperature: 50° to 90°F (10° to 35°C) (72°F [22°C] or more recommended) / Humidity: 40 to 60%
Power OFF Temperature: 41° to 104°F (5° to 40°C) / Humidity: 20 to 80% (no condensation)
PrintLinks System Requirements
Operating system Windows® 7/10 (64-bit)
CPU Intel® Core™ 8, 4.0 GHz or faster recommended
RAM 8 GB or more recommended
Video card and monitor A resolution of 1,280 x 1,024 or more recommended
Free hard-disk space 80 GB or more recommended
Hard-disk file system NTFS format
Optical drive DVD-ROM drive
Other requirements Ethernet or USB port
Internet connection and web browser to software Registration

Please note: Considering that you will be using software such as Illustrator,
we recommend that you use as high performance computer as possible to reduce RIP processing time.
We also recommend using a hard disk that has large enough capacity,
as print files are often tens of GB in size (or larger) when data is high resolution.
