Textile & Dye-Sublimation Printers

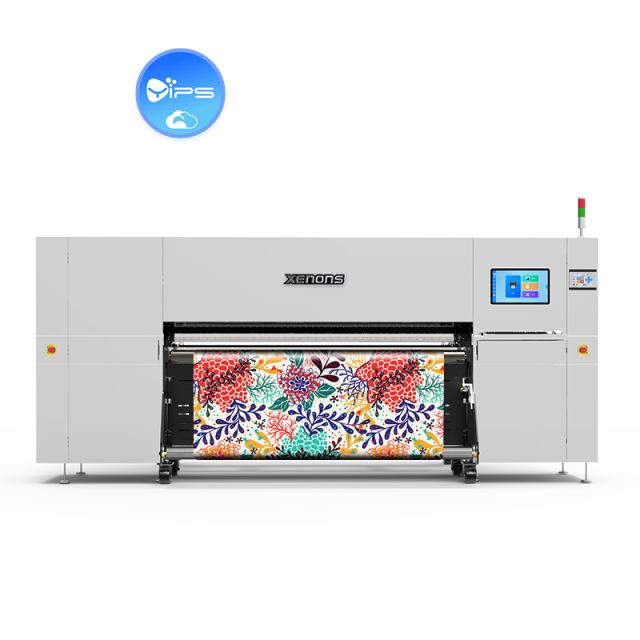

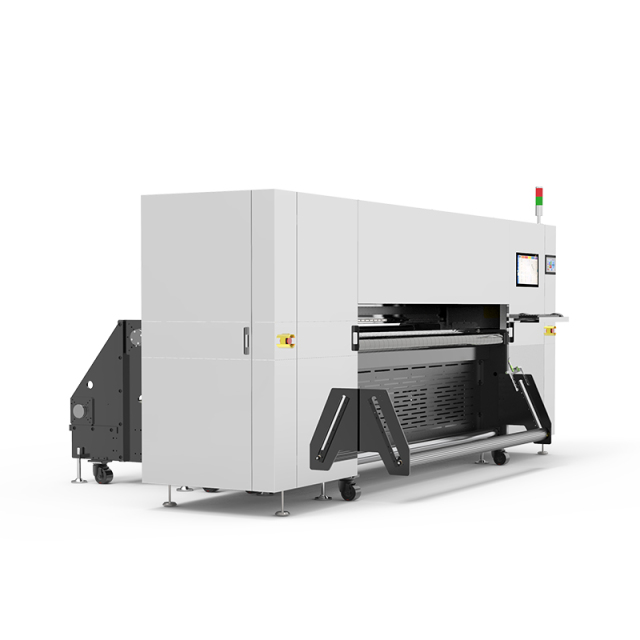

S8000 1.8m sublimation printer with i3200 15 printheads

Hi-Volume production for textile/apparel use.
1.6/1.8m 10,000m retractable material optional
Printhead: EPSON i3200 * 15
Productivity: 600sqm/h
Ink Set: CMYK
Drop Volume: 2.5pl
Print Size: 1800mm
Resolution: 3200dpi
Ink: Dye Sublimation, Water ba
Description Specifications Applications Videos

OVERVIEW

High-Speed XENONS Coltex Printer for Dye Sublimation Printing


Xenons S8000 SERIES is a High-Speed sublimation printer that offers up to 640sq m/h print speed and quality at an affordable cost.
Ideal for dye-sublimation transfer printing of custom clothing, fashion apparel, sportswear, soft signage, merchandise, and hard surface work,it offers
Versatility Dye-Sublimation for widest application and maximum business.
This high-speed sublimation printing machine is the perfect solution for dye sublimation printing.
Ideal for dye-sublimation transfer printing of custom clothing, soft signage, merchandise, and hard surface work.

Maximum output speed of 13320sqm/day  (143375sq.ft/day)
With its staggered 15 EPSON i3200 printhead, Xenons Coltex CS15 model suitable for any work,
combine a high speed 550sqm/h(5,918sq.ft/h) with high quality 2.5pl. That speed is higher previous EPSON printhead printers.

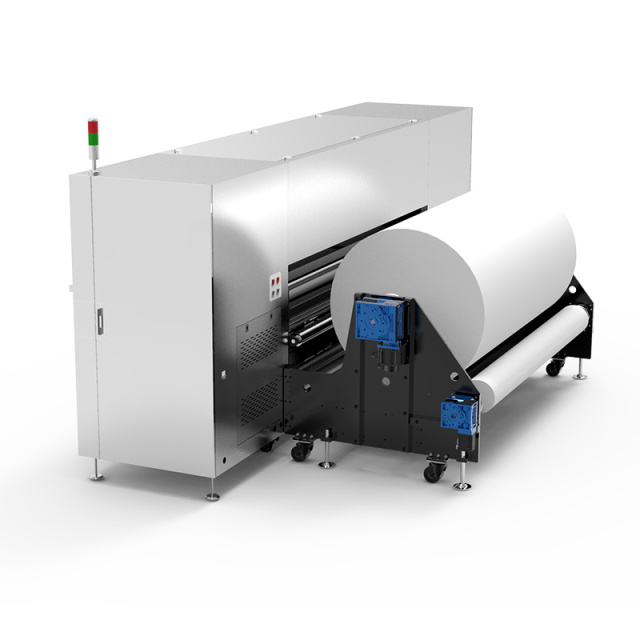

Jumbo Roll media system
This media system support to load a jumbo roll transfer paper, Reduces the cost per square meter and shortens the
downtime due to media replacement in comparison to smaller transfer paper rolls.
10Kg auto ink supply system
An automation ink supply system enables you load 10kg inks per color, Reduce the running cost and the downtime
due to ink replacement,  The ink alarm system helps fill the ink in advance.
PC Station integrated to printer
Save the space for a computer desk, a PC station mounted on the printer.
An Easy-to-use system
Equipped with automatic capping and cleaning system, minimize the need to call an engineer.
Variable dots printing
Research has shown that the level of grayscale used in an image contribute considerably to its perceived quality,
more so than pure dpi resolution. The larger dots enhanced a superior color, while the smallest dots providing gradation
equivalent to a much higher resolution.
Efficient data algorithm reduce and correct banding
The special data algorithm enable the software analysis the data and reproduce the output method automatically minimizes ink drying
times on substrates, and stepping error compensation, eliminating color banding effects. Depending on substrates and design, the o-
ptimal percentage of feathering can achieve 20~80% speed increases avoiding the speed reductions caused by adding additional full
passes
Intelligent Job management
Print meters setting, printing record management, color mapping function and ink calculation functions make sure an efficient job management.


X E N O N S
Models S8000
Print Head Epson i3200
Number of print heads 15
Media Width 1920 mm (75.5 Inch)
Thickness Maximum 3.00 mm
Roll Outer Diameter Maximum 750 mm (29.5 in),
76.2mm (3 inch) ,50.8(2 inch)
Roll Weight Maximum 700 Kg
Media take-up system Jumbo roll Auto-Feeding system and take-up system
Types Ideal for dye-sublimation transfer printing of custom clothing, fashion apparel, sportswear, soft signage, merchandise, and others
Printing Width Maximum 1880mm (74 in)
Printing Speed 555 sq.m/hour(5918sq.ft/h)
Printing Resolution (dots per inch) Maximum 3200 dpi
Inks Types Dye Sublimation / Water Base
Ink Capacity 3.5L (± 100 ml)
Colors 4Colors(KCMY)
Ink curing unit Integrated Tri-Heating System,
Extend infrated heating and cooling system
Interface High Speed USB-3.0/ Lan port
Power-saving feature Automatic sleep feature
Power supply Voltage and frequency AC 220 V ± 10%, 50/60 Hz
Required power capacity Maximum 35A (Printer 15A, Heater 25A)
Printer Dimensions Machine(L*W*H): 4032*1210*1612mm
Package(L*W*H): 4410*1460*1830mm
RIP software MT/PP/ONYX
Weight (with stand) G.W:1065KG   N.W:765KG
Environmental Power ON Temperature: 68° to 90°F (20° to 32°C) (72°F [22°C] or more recommended) / Humidity: 40 to 60% (no conde nsation)
Power OFF Temperature: 41° to 104°F (5° to 40°C)
Humidity: 20 to 80% (no condensation)
PrintLinks System Requirements
Operating system Windows® 7/10 (64-bit)
CPU Intel® Core™ 8, 4.0 GHz or faster recommended
RAM 8 GB or more recommended
Video card and monitor A resolution of 1,280 x 1,024 or more recommended
Free hard-disk space 80 GB or more recommended
Hard-disk file system NTFS format
Optical drive DVD-ROM drive
Other requirements Ethernet or USB port
Internet connection and web browser to software Registration

Please note: Considering that you will be using software such as Illustrator,
we recommend that you use as high performance computer as possible to reduce RIP processing time.
We also recommend using a hard disk that has large enough capacity,
as print files are often tens of GB in size (or larger) when data is high resolution.
